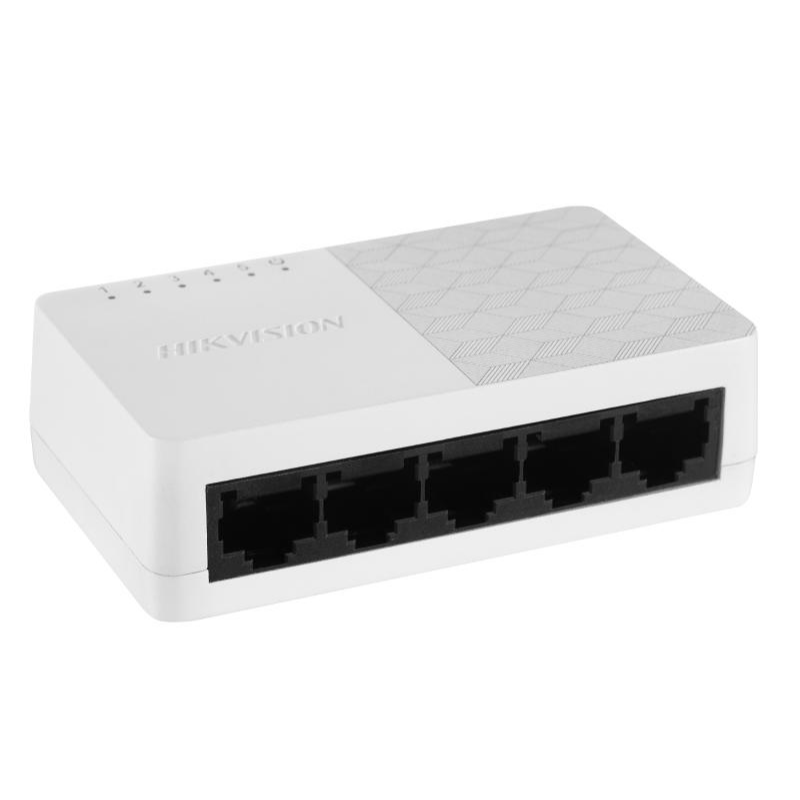

HIKVISION DS-3E0105D-O 5-Port Fast Ethernet Plastic Desktop Switch

Hikvision DS-3E0105D-O 5-Port Fast Ethernet Plastic Desktop Switch

The Hikvision DS-3E0105D-O is a compact and efficient 5-port Fast Ethernet switch, designed to provide seamless and stable network connectivity. This switch is ideal for small businesses, home offices, and other networking setups that require reliable and fast data transmission. With a plug-and-play design, it eliminates the need for complex configurations, making it user-friendly and highly efficient.

Key Features:

• 5 x 10/100 Mbps Ethernet Ports: Provides a stable and high-speed wired connection for up to five devices.

• MDI/MDIX Support: Eliminates the need for crossover cables, allowing seamless connectivity.

• Store-and-Forward Switching: Ensures error-free data transmission by inspecting each packet before forwarding.

• MAC Address Auto-learning & Aging: Optimizes network performance by efficiently managing MAC addresses.

• Compact & Durable Plastic Casing: Lightweight and robust design, suitable for long-term use.

• Plug & Play Installation: No configuration required; simply connect the devices and start using.

• Desktop & Wall-Mountable: Flexible placement options for convenience and space-saving.

• Low Power Consumption: Energy-efficient design for minimal power usage.

Technical Specifications:

• Model: DS-3E0105D-O

• Ports: 5 x 10/100 Mbps RJ45 Ethernet Ports

• Transmission Method: Store-and-Forward

• MAC Address Table: 2K

• Switching Capacity: 1 Gbps

• Packet Forwarding Rate: 0.74 Mpps

• Power Supply: 5 VDC, 0.6 A

• Power Consumption: ≤ 3 W

• Installation: Desktop / Wall-Mountable

• Housing Material: ABS Plastic

• Dimensions: 83 mm × 22 mm × 52 mm

• Weight: 0.093 kg

• Operating Temperature: 0°C to 40°C

• Storage Temperature: –40°C to 85°C

• Operating Humidity: 5% to 95% (non-condensing)

• Surge Protection: 2 kV
