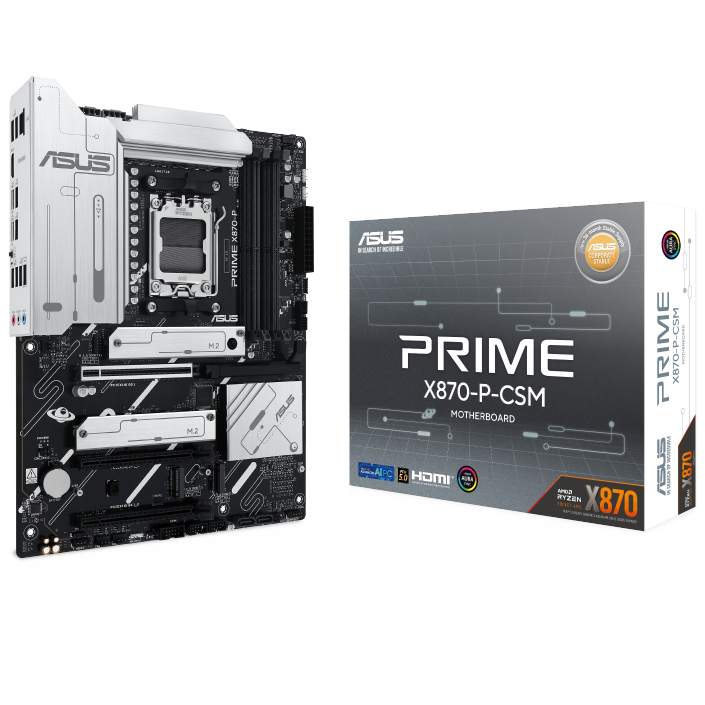

Asus Prime X870-P-CSM DDR5 AMD AM5 ATX Motherboard

ASUS Prime X870-P-CSM DDR5 AMD AM5 ATX Motherboard

The ASUS Prime X870-P-CSM is a high-performance ATX motherboard designed for AMD Ryzen 8000 and 7000 Series processors using the latest AM5 socket. Built to deliver exceptional stability and speed, it supports DDR5 memory and PCIe 5.0 for the next generation of computing. Featuring ASUS Corporate Stable Model (CSM) support, it’s ideal for both productivity and commercial system builders.

Key Features:

• Socket/CPU Support: AMD AM5 socket, compatible with Ryzen 8000/7000 Series

• Chipset: AMD X870

• Form Factor: ATX

• Memory Support: 4 x DDR5 DIMMs, up to 192GB

• Expansion Slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1

• Storage: 2 x M.2 PCIe 5.0/4.0 slots, 4 x SATA 6Gb/s ports

• Networking: Realtek 2.5Gb Ethernet

• USB Ports: USB 3.2 Gen 2×2 Type-C, USB 3.2 Gen 2/1, USB 2.0

• Audio: High-definition 7.1-channel audio with premium components

• Cooling & Design: Enhanced VRM cooling, M.2 heatsinks, and multiple fan headers

• CSM Support: ASUS Corporate Stable Model program with extended product lifecycle and enterprise-grade management features

Engineered for reliable power delivery and cutting-edge speed, the ASUS Prime X870-P-CSM ensures seamless performance whether you’re gaming, working, or building enterprise systems.
