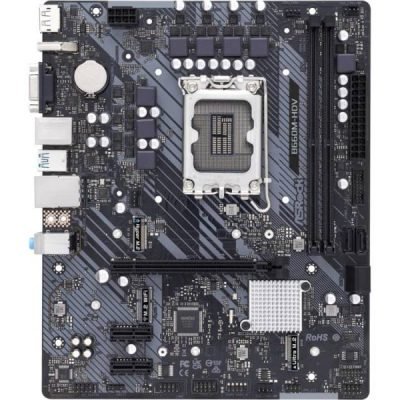

ASRock B660M-HDV LGA 1700 Intel B660 SATA 6Gb/s DDR4 Micro ATX Motherboard

ASRock B660M-HDV LGA 1700 Intel B660 SATA 6Gb/s DDR4 Micro ATX Motherboard:

• Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
• 6 Phase Power Design
• Supports DDR4 5066MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
• 1 M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3
• 1 Hyper M.2 (PCIe Gen4 x4)
• 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 6 USB 3.2 Gen1 (3 Rear Type-A, 1 Rear Type-C, 2 Front)
• 5 USB 2.0 (2 Rear, 3 Front)
• Intel Gigabit LAN
• *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.*
