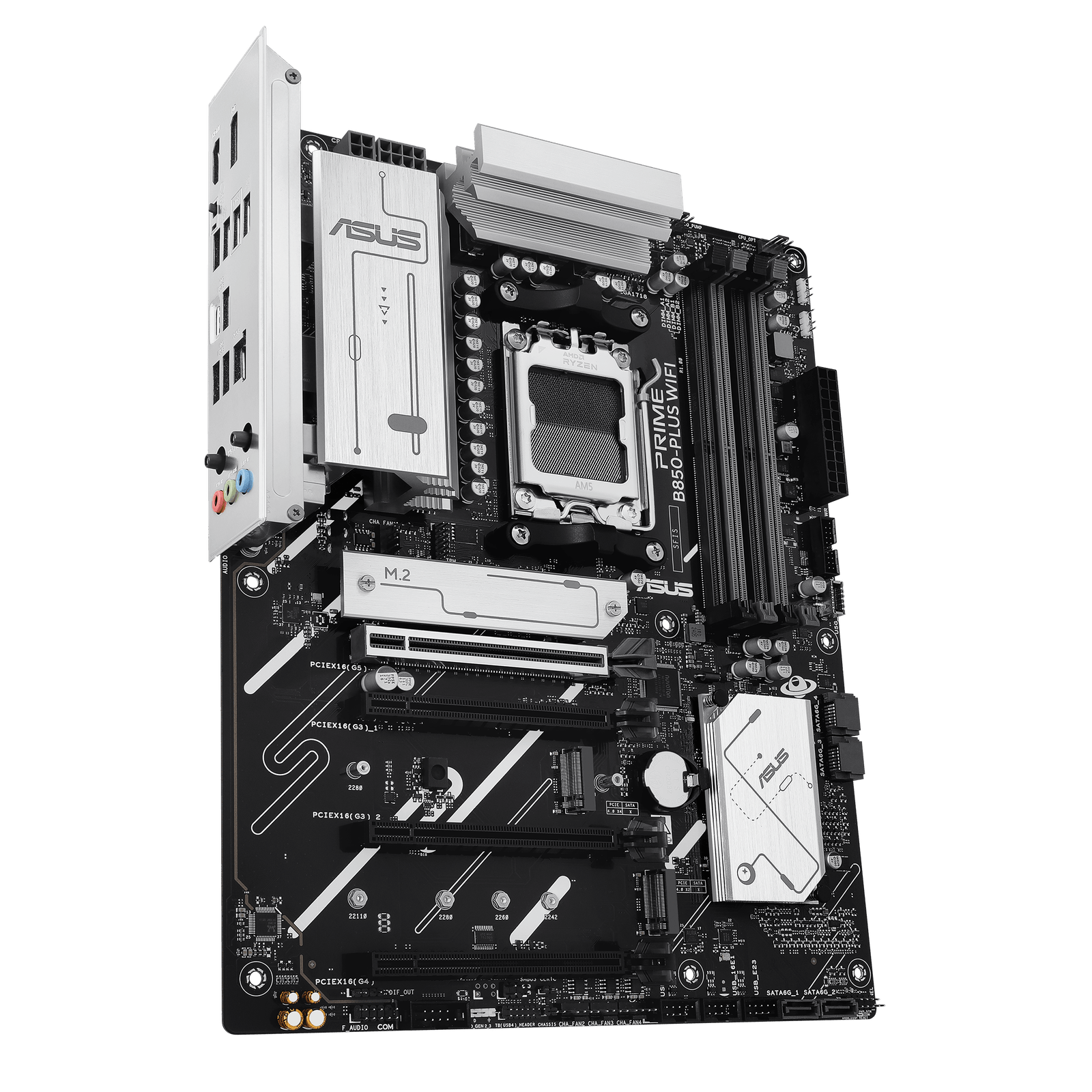

Asus Prime B850-Plus Wifi-CSM AMD AM5 B850 ATX Motherboard

ASUS Prime B850-Plus WiFi-CSM AMD AM5 B850 ATX Motherboard

The ASUS Prime B850-Plus WiFi-CSM is a versatile ATX motherboard built for AMD Ryzen 7000 series processors on the AM5 socket, offering reliable performance with business-grade stability. Powered by the B850 chipset, it supports the latest DDR5 memory, PCIe 5.0 for GPUs, and high-speed M.2 storage for fast, efficient computing. With onboard WiFi, robust power delivery, and extensive I/O, it’s a well-rounded solution for mainstream PC builds and professional environments alike.

Designed with ASUS Corporate Stable Model (CSM) features, this board ensures long-term availability and reliability, making it ideal for system integrators and business users looking for a stable and future-ready platform.

Key Specifications:

• Socket: AM5, supports AMD Ryzen 7000 Series CPUs

• Chipset: AMD B850

• Memory: 4 x DDR5 DIMM slots, up to 192GB

• Expansion Slots:

  • 1 x PCIe 5.0 x16

  • 1 x PCIe 4.0 x16 (x4 mode)

  • 2 x PCIe 3.0 x1

• Storage:

  • 3 x M.2 PCIe 4.0 x4

  • 4 x SATA 6Gb/s ports

• Networking: WiFi (up to WiFi 6E), Realtek 2.5Gb Ethernet

• USB Ports:

  • USB 3.2 Gen 2×2 Type-C

  • USB 3.2 Gen 2 / Gen 1

  • USB 2.0

• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

• Form Factor: ATX

• Business Features: ASUS CSM support, TPM header, long-term support

• Cooling: VRM heatsinks, hybrid fan headers

• Design: Sleek black PCB with subtle accents and Aura Sync RGB headers
