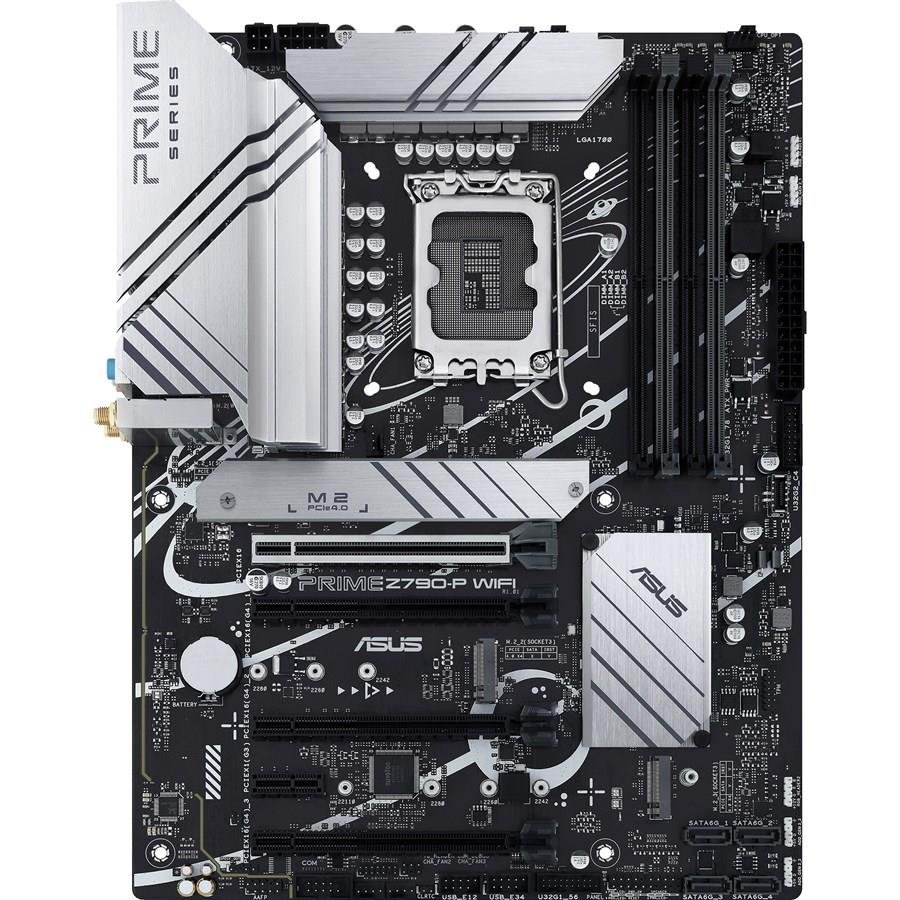

ASUS PRIME Z790-P-CSM 13th Gen LGA 1700 Motherboard

ASUS PRIME Z790-P-CSM 13th Gen LGA 1700 Motherboard

The ASUS PRIME Z790-P-CSM is a high-performance ATX motherboard crafted to support Intel’s 12th and 13th Gen processors on the LGA 1700 socket. Designed for business and advanced users, it combines powerful performance with stability and long-term reliability. With support for DDR5 memory, PCIe 5.0, and comprehensive cooling, this board ensures smooth multitasking, productivity, and system responsiveness.

Equipped with business-friendly features like ASUS CSM (Corporate Stable Model), TPM header, and extensive I/O options, the PRIME Z790-P-CSM is built for modern workstations and future-ready builds.

Key Specifications:

• Socket: LGA 1700, supports Intel 12th & 13th Gen CPUs

• Chipset: Intel Z790

• Memory: 4 x DDR5 DIMM slots, up to 192GB

• Expansion Slots:

  • 1 x PCIe 5.0 x16

  • 2 x PCIe 4.0 x16 (x4 mode)

  • 1 x PCIe 3.0 x1

• Storage:

  • 3 x M.2 PCIe 4.0 x4

  • 4 x SATA 6Gb/s ports

• Networking: Realtek 2.5Gb Ethernet

• USB Ports:

  • USB 3.2 Gen 2×2 Type-C

  • USB 3.2 Gen 2

  • USB 2.0

• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

• Form Factor: ATX

• Business Features: ASUS CSM, COM header, TPM header

• Cooling: VRM heatsinks, hybrid fan headers

• RGB Support: Aura Sync RGB headers
